Scout 800
| Diagram drawings of driver's side of Scout 800. |
| Image ID: | 110722 |
|---|---|
| Creation Date: | date unknown |
| Creator Name: | International Harvester Company |
| City: | |
| County: | |
| State: | |
| Collection Name: | Fort Wayne Works industrial design images, circa 1957-1992 |
| Genre: | Photograph |
| Original Format Type: | transparency, color |
| Original Format Number: | M2012-116, Box 6 |
| Original Dimensions: | 35 mm |

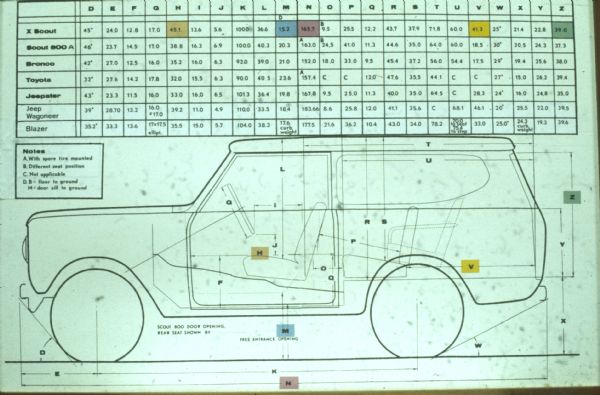

| Industrial Design Department Photographs, ca. 1957-1992 From Jim Allen: "Comparison of dimensions between existing Scout 800 and X-Scout (Scout II in development), ca. 1968. This drawing was part of a progress packet on the X-Scout Development around 1968. This page shows comparisons of the 800 (dotted lines) and the X-Scout at the current level of development. Competing vehicle dimensions are also shown." |
